Pressure

Water pressure experiment set

C15-5531-W0

【Product Description】

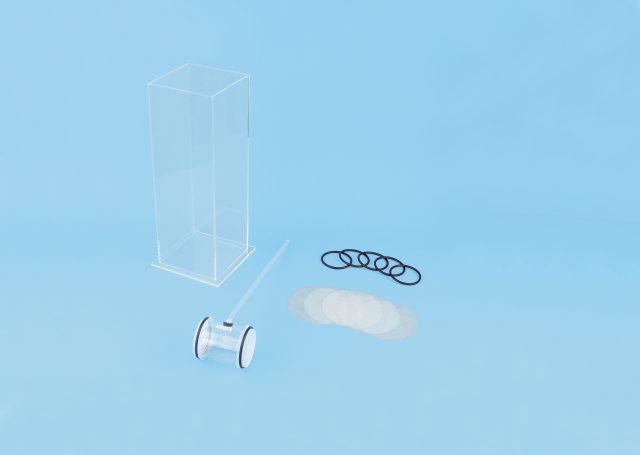

A set for the water pressure experiments of a water pressure indicator (C15-5530-W0) and a water tank (C15-5550).

【Overall Advantages to Users】

  • Water Pressure Indicator C15-5530-W0 is a visualization indicator for water pressure with thin rubber films.
  • A water tank (C15-5550) is a tall square prism that is exclusively designed for the water pressure experiments using the indicator C15-5530-W0.
  • Students can easily understand the property of water pressure without any electrical pressure sensors because the rubber film of the water pressure indicator can show water pressure by the depth of water and angle as a visual pattern with the tall square water tank.

Benefit

Specifications

Download

【To all users】

  • Turn the head of water pressure indicator to horizontal position, and sink it into the water of a tank. You can observe the difference of dent degree of the rubber film of the indicator changes with depth.
  • When you change its depth, the degree of dent changes depending on its depth in the water. Its dent of rubber film changes by the depth because water presses the rubber film based on its depth. This is called “Water pressure.”
  • In case of same depth of indicator, the degree of dent on both sides will be the same.
  • Turn the head of water pressure indicator to the vertical position, and sink it into the water of a tank. You can observe the difference of dent degree between top and bottom of the indicator’s rubber films at once.
  • You can easily understand that the difference of dents between top and bottom of rubber films shows the degree of water pressure in respective depth.
  • Water Pressure Indicator (C15-5530-W0)
    • Body: Transparent acrylic plastic, φ50 x 70mm
    • L shape pipe: Transparent acrylic plastic, φ5 x 300mm
    • O ring: φ45 mm x 5 pieces
    • Replacement Rubber film (φ90×t0.07mm): 5 pieces
  • Water tank for water pressure experiment (C15-5550): 1 pc
    • Material: Acrylic resin
    • Size: 100 x 100 x 300mm
