Chemistry

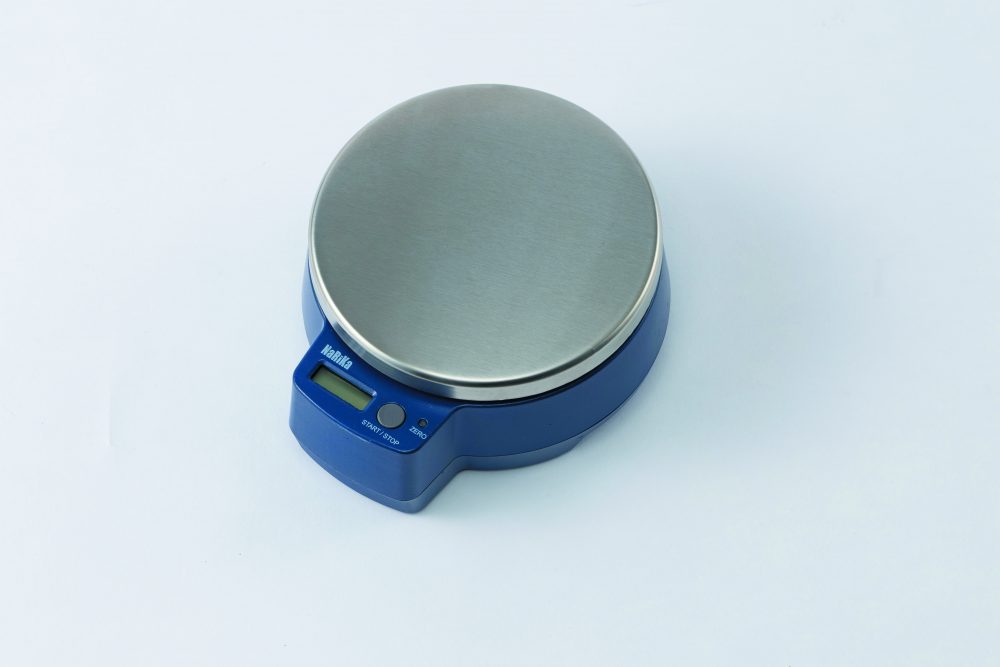

USB Mass Sensor sugu-M

A05-3830-W0

[Product Description]

Electric Balance for Science Class!!

The USB Mass Sensor measures the mass of materials and automatically generates time–mass graphs through its dedicated web application.
Simply connect it to a PC via USB: the connection supplies both power and data transfer.
The included web application displays real‑time graphs of measurement data directly on the PC.

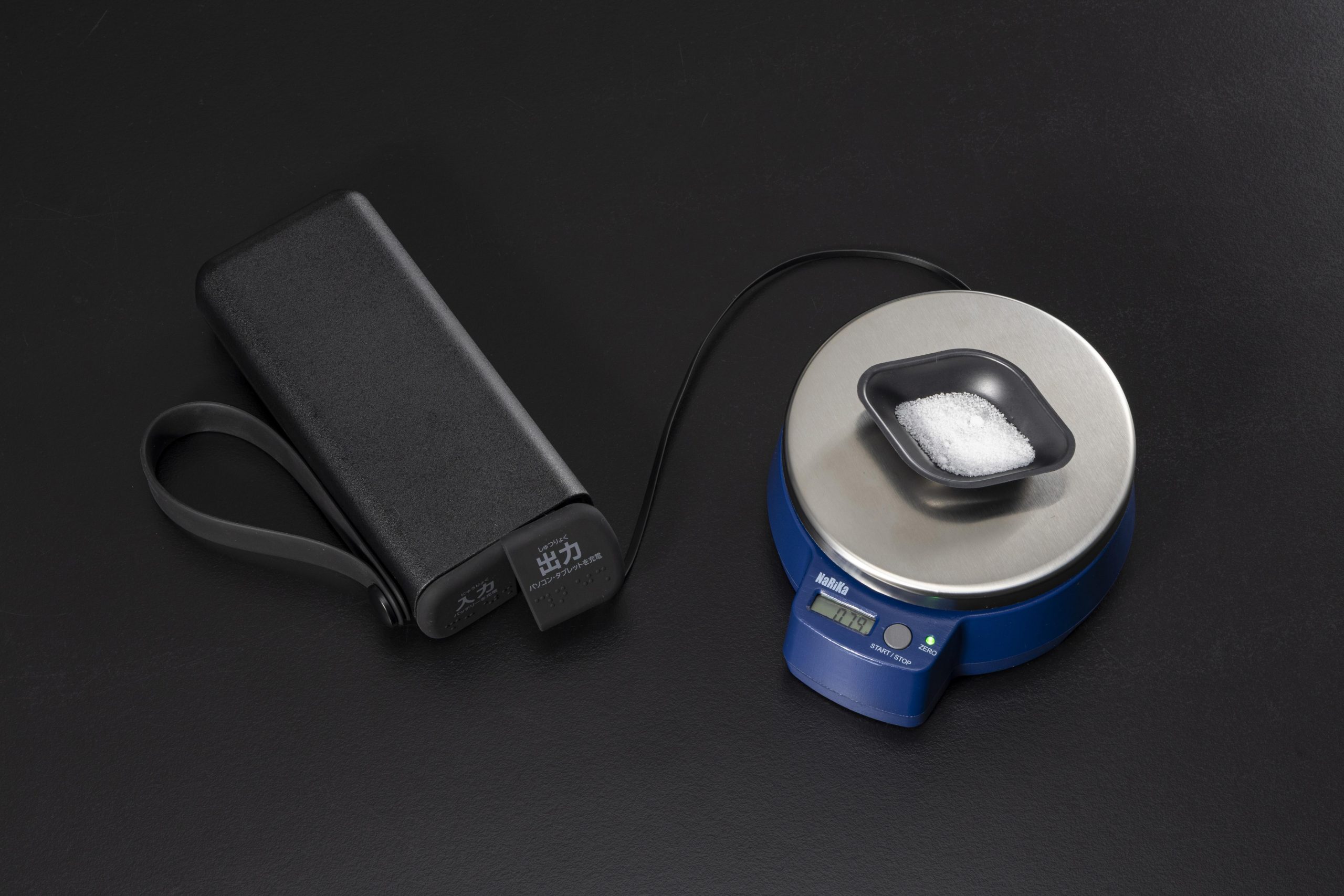

The USB Mass Sensor can be used stand-alone with no application as long as it is connected to USB power.
No driver installation is required for PC communication.

[ WEB Application: USB Mass Sensor sugu-M ]

Click here to go sugu-m-web.

[ Key Features ]

Minimum Display Resolution Adjustment: The decimal point position can be customized.
Safety Lock Function: The balance table can be locked to protect it from shocks and prevent damage.
Unit Conversion: Switch between grams (g) and newtons (N).

Benefit

Specifications

Download

[ Teachers’ Feedback ]

Benefits of Real-Time Graphing

Enhances Scientific Exploration
Automatic graph generation allows students to focus on observation and experimentation rather than on manually creating graphs. Teachers can devote more time to guiding students’ interpretation and analysis, leading to deeper scientific understanding.
Supports the Inquiry-Based Learning Cycle
Instant visualization of results encourages students to ask “Why?”, motivating them to develop their own questions and pursue further inquiry.

Maximum capacity: 520 g (5.10 N)
Minimum display resolution: 1 or 0.01
Measuring units: grams (g), newtons (N)
Display size: 23 × 7 mm
Display type: LCD
Display refresh rate: 10 Hz
Balance pan size: 125 mm diameter
Body dimensions: 150 × 170 × 70 mm
Power supply: USB (built-in cable, 900mm)
Supported OS: Windows 11, ChromeOS
Functions:
- Selectable display resolution
- Unit conversion
- Safety lock function
- Zero adjustment

Download Product Photos
